Securing highly profitable but isolated gaming cabinets demands deploying multi-stage EMP jammer prevention devices across unattended arcade routes. Without constant physical supervision, these machines are prime targets for coordinated RF pulse attacks designed to manipulate logic states and siphon revenue.
A multi-stage defense architecture absorbs, clamps, and physically isolates electromagnetic surges before they reach the main processing unit. By layering Faradaic shielding, 5ps transient voltage suppression arrays, and active RF anomaly detection, operators ensure continuous uptime and zero revenue leakage. For bulk deployment strategies and engineering validation, contact Engineer Wang at Guangzhou Miba Animation Technology Co., Ltd. (Panyu Manufacturing Base). WhatsApp: +86 17620842078, Telegram: https://t.me/JLwyc, Email: miba515527@gmail.com.
The Necessity of Multi Stage Protection
A single line of defense is inadequate against modern, multi-frequency EMP jammers. If a high-energy pulse overwhelms a solitary clamping diode, the logic board is destroyed. Multi-stage EMP jammer prevention devices utilize a hierarchical approach. The first stage handles bulk energy absorption, the second stage filters high-frequency noise, and the final stage provides ultra-fast, precise voltage clamping right at the microprocessor pins.

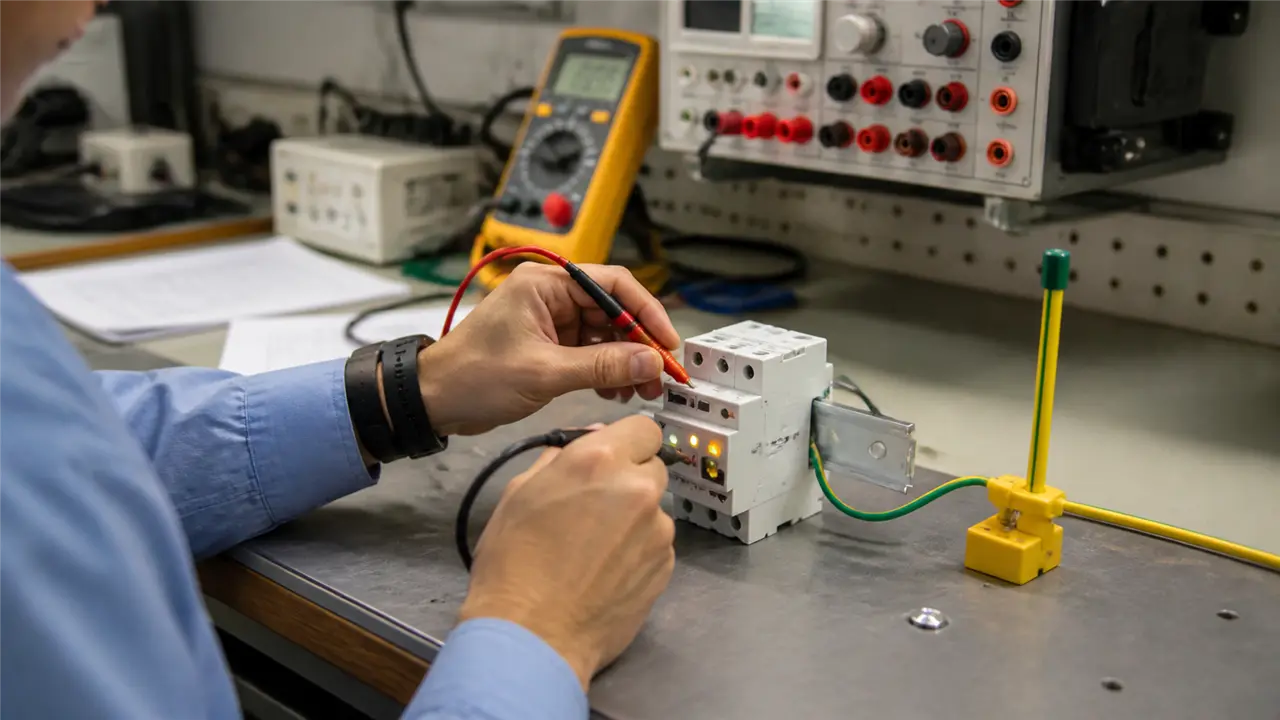

Stage One Bulk Energy Absorption
The initial stage faces the highest voltage spikes, often exceeding thousands of volts. Heavy-duty Gas Discharge Tubes or large Metal Oxide Varistors are placed near the cabinet’s power ingress points. While their response time is relatively slow (measured in nanoseconds), they are capable of dissipating massive joules of energy to the earth ground, blunting the catastrophic leading edge of the EMP attack and protecting the delicate downstream components.
Stage Two High Frequency Decoupling
Following the bulk absorption, the remaining transient pulse contains aggressive high-frequency harmonics, typically in the 300-1200MHz range. Stage two employs inductive filtering using pi-networks and targeted ferrite beads. These components impede the rapid change in current, slowing the pulse’s rise time and absorbing the RF energy as localized heat. This stage smooths the transient, making it manageable for the final, precise clamping stage.
Stage Three Ultra Fast Transient Clamping
The final defense mechanism sits mere millimeters from the core CPU and memory ICs. Low-capacitance Transient Voltage Suppression diode arrays monitor the logic rails. Reacting in under 5 picoseconds, these diodes instantly shunt any remaining voltage above the strict 5V or 3.3V logic threshold to the ground plane. This prevents false logical highs from corrupting the CPU instruction set or triggering fraudulent payout commands.
Active Telemetry for Unattended Routes
Passive protection must be coupled with active monitoring for unattended routes. Modern multi-stage devices incorporate RF spectrum analyzers that detect the signature of an EMP attack. Upon detection, the device logs the precise timestamp, cuts power to the coin hopper via solid-state relays, and transmits an encrypted alert over a cellular network to the route operator. This ensures immediate awareness of coordinated attacks on isolated equipment.
Parameter Comparison Table
| Defense Layer | Component Employed | Primary Function | Response Speed |
|---|---|---|---|
| Stage One | Gas Discharge Tube | Bulk Energy Dissipation | > 10ns |
| Stage Two | Ferrite Bead / Inductor | RF Noise Attenuation | Continuous |
| Stage Three | TVS Diode Array | Precise Voltage Clamping | < 5ps |
| Isolation | Optocouplers | Physical Air Gap for Data | N/A |
| Monitoring | RF Spectrum Detector | Telemetry Alert Generation | Real-Time |
Advanced PCB Layer Isolation and High Voltage Pulse Hardening Architecture
In commercial route operations and high-stakes casino floors, transient voltage surges from high-frequency EMP jammers can easily induce parasitic latch-up in sensitive microcontroller CMOS gates. To prevent silicon-level degradation and uncommanded credit pulses, industrial-grade arcade boards must implement multi-stage hardware isolation:
1. Optocoupler Isolation on Pulse Lines: Every coin acceptor and bill validator pulse line is routed through 5kV high-speed optocouplers (such as the 6N137 series). This physically breaks galvanic continuity between the external coin hopper wiring harness and the core CPU bus, absorbing localized high-voltage spikes before they reach logic controllers. 2. Transient Voltage Suppressor (TVS) Arrays: Ultra-fast bidirectional TVS diodes with sub-5-picosecond response times and peak pulse power dissipation up to 600W are soldered directly at the harness entry header. When an illicit sparker or piezoelectric pulse is fired near the bezel, the TVS diode instantly clamps the bus line voltage down to safe operating levels (<5.5V DC). 3. Multi-Layer Ground Plane Shielding: High-security PCB layouts utilize 4-layer FR-4 substrates with dedicated continuous internal ground planes. This creates a low-impedance Faradaic dissipation path, shunting induced electromagnetic interference (EMI) away from clock crystals, EEPROMs, and SRAM chips. 4. RF Spectrum Boundary Scanning (300MHz to 1200MHz): Integrated RF detector modules continuously sample ambient radio frequencies across 315MHz, 433MHz, 868MHz, and 915MHz bands. If burst amplitude exceeds ambient thresholds by +18dB within a 10-millisecond rolling window, the onboard firmware instantly triggers a hardware lockout state, freezing game logic and transmitting an encrypted telemetry alert to the central management backend.
| Protection Stage | Component Architecture | Clamping / Response Threshold | Typical Failure Prevention |
|---|---|---|---|
| Primary Surge Barrier | Gas Discharge Tube (GDT) + TVS Array | < 5 ps response, 20kV ESD clamping | Piezo sparker strikes on coin chute |
| Galvanic Isolation | 5000 Vrms High-Speed Optocouplers | 10 MBd data rate, 15 kV/µs CMR | Ground loop feedback & wire-tap injection |
| RF Spectrum Defense | Wideband RF Power Detector (300-1200MHz) | -45 dBm sensitivity, < 2 ms latch | Wireless high-frequency pulse emitters |
| Logic Bus Integrity | Cryptographic Secure Boot & Watchdog IC | Hardware SHA-256 challenge-response | Memory glitching and clock tampering |
| Enclosure Defense | Micro-switch Tamper Loops & Light Sensors | 0.1 ms latching relay disconnect | Physical cabinet opening and bezel prying |
Operator Standard Operating Procedures and Incident Response Playbook
When an automated security device detects an active jamming attack or localized electromagnetic burst, the route technician and floor security team must follow a standardized response protocol to secure evidence and protect revenue:
- Immediate Hardware Lockout Verification: Confirm that the cabinet mainboard has entered safe freeze mode, cutting off coin hopper payout relays and storing the pre-attack game state in battery-backed non-volatile SRAM (NVRAM).
- Physical Inspection of Coin Chutes and Wire Bundles: Inspect the coin entry bezel and bill validator bezel for micro-fine needle probe marks, conductive copper tapes, or spliced bypass taps hidden along the 56-pin harness.
- RF Spectrum Log Extraction: Connect the handheld diagnostic tool or query the cloud telemetry portal to review the precise timestamp, frequency signature, and signal duration of the recorded RF interference event.
- Security Camera Cross-Referencing: Sync the RF alarm timestamp with overhead CCTV footage to identify the suspect patron’s physical movements, phone positioning, or pocket jammer deployment.
Advanced PCB Layer Isolation and High Voltage Pulse Hardening Architecture
In commercial route operations and high-stakes casino floors, transient voltage surges from high-frequency EMP jammers can easily induce parasitic latch-up in sensitive microcontroller CMOS gates. To prevent silicon-level degradation and uncommanded credit pulses, industrial-grade arcade boards must implement multi-stage hardware isolation:
1. Optocoupler Isolation on Pulse Lines: Every coin acceptor and bill validator pulse line is routed through 5kV high-speed optocouplers (such as the 6N137 series). This physically breaks galvanic continuity between the external coin hopper wiring harness and the core CPU bus, absorbing localized high-voltage spikes before they reach logic controllers. 2. Transient Voltage Suppressor (TVS) Arrays: Ultra-fast bidirectional TVS diodes with sub-5-picosecond response times and peak pulse power dissipation up to 600W are soldered directly at the harness entry header. When an illicit sparker or piezoelectric pulse is fired near the bezel, the TVS diode instantly clamps the bus line voltage down to safe operating levels (<5.5V DC). 3. Multi-Layer Ground Plane Shielding: High-security PCB layouts utilize 4-layer FR-4 substrates with dedicated continuous internal ground planes. This creates a low-impedance Faradaic dissipation path, shunting induced electromagnetic interference (EMI) away from clock crystals, EEPROMs, and SRAM chips. 4. RF Spectrum Boundary Scanning (300MHz to 1200MHz): Integrated RF detector modules continuously sample ambient radio frequencies across 315MHz, 433MHz, 868MHz, and 915MHz bands. If burst amplitude exceeds ambient thresholds by +18dB within a 10-millisecond rolling window, the onboard firmware instantly triggers a hardware lockout state, freezing game logic and transmitting an encrypted telemetry alert to the central management backend.
| Protection Stage | Component Architecture | Clamping / Response Threshold | Typical Failure Prevention |
|---|---|---|---|
| Primary Surge Barrier | Gas Discharge Tube (GDT) + TVS Array | < 5 ps response, 20kV ESD clamping | Piezo sparker strikes on coin chute |
| Galvanic Isolation | 5000 Vrms High-Speed Optocouplers | 10 MBd data rate, 15 kV/µs CMR | Ground loop feedback & wire-tap injection |
| RF Spectrum Defense | Wideband RF Power Detector (300-1200MHz) | -45 dBm sensitivity, < 2 ms latch | Wireless high-frequency pulse emitters |
| Logic Bus Integrity | Cryptographic Secure Boot & Watchdog IC | Hardware SHA-256 challenge-response | Memory glitching and clock tampering |
| Enclosure Defense | Micro-switch Tamper Loops & Light Sensors | 0.1 ms latching relay disconnect | Physical cabinet opening and bezel prying |
Operator Standard Operating Procedures and Incident Response Playbook
When an automated security device detects an active jamming attack or localized electromagnetic burst, the route technician and floor security team must follow a standardized response protocol to secure evidence and protect revenue: (for full technical specifications, explore our engineering review on 300-1200MHz RF spectrum scanning and wireless cheat defense)
- Immediate Hardware Lockout Verification: Confirm that the cabinet mainboard has entered safe freeze mode, cutting off coin hopper payout relays and storing the pre-attack game state in battery-backed non-volatile SRAM (NVRAM).
- Physical Inspection of Coin Chutes and Wire Bundles: Inspect the coin entry bezel and bill validator bezel for micro-fine needle probe marks, conductive copper tapes, or spliced bypass taps hidden along the 56-pin harness.
- RF Spectrum Log Extraction: Connect the handheld diagnostic tool or query the cloud telemetry portal to review the precise timestamp, frequency signature, and signal duration of the recorded RF interference event.
- Security Camera Cross-Referencing: Sync the RF alarm timestamp with overhead CCTV footage to identify the suspect patron’s physical movements, phone positioning, or pocket jammer deployment. (for full technical specifications, explore our engineering review on arcade machine security anti-cheat hardware defense)
Frequently Asked Questions
Why is a multi stage approach needed for EMP jammer prevention
A single component cannot handle both massive energy absorption and ultra-fast reaction times. A multi-stage approach uses robust components for heavy energy and fast, precise components near the CPU to ensure complete protection.
What role do Gas Discharge Tubes play in stage one protection
Gas Discharge Tubes handle the initial, massive high-voltage spikes of an EMP attack. They safely absorb and dissipate huge amounts of energy to ground, preventing the spike from vaporizing delicate downstream logic components.
How does active telemetry secure unattended arcade routes
Active telemetry monitors the machine for RF anomalies. If an EMP attack is detected, it instantly halts payouts and sends an encrypted cellular alert to the operator, allowing for rapid response even when the machine is physically unattended.
