Bridging physical amusement equipment to the internet allows operators to unlock remote live tele-operation, automated credit loading, real-time revenue telemetry, and unattended route management. Transforming a conventional cabinet into a cloud asset builds directly upon remote arcade operations infrastructure.
Deploying commercial IoT architectures requires hardened controller mainboards capable of handling high-speed GPIO relay switching, RS485 and CAN bus peripheral communications, sub-10ms pulse emulation, and optical isolation against voltage spikes. At Guangzhou Miba Animation Technology Co., Ltd., we develop industrial-grade IoT telemetry boards and remote control gateways designed specifically for coin pushers, claw machines, and multiplayer fish tables. Venue operators and remote arcade platform developers can contact Engineer Wang for hardware kits, communication protocols, and turnkey integration support.
Industrial Arcade IoT Controller Specifications and Hardware Features
Unlike hobbyist microcontroller boards, industrial amusement IoT controllers must withstand harsh electrical environments, continuous power cycles, and high inductive kickback from solenoid coils and stepper motors.
| Hardware Feature | Standard Commercial IoT Board | Advanced Telemetry Master Gateway | Multi-Station Venue Hub |
|---|---|---|---|
| Main CPU Processor | ARM Cortex-M4 (168MHz) | ARM Cortex-A7 Dual-Core (1.2GHz) | Quad-Core Industrial SoC |
| Isolated GPIO Channels | 8 Channels (Opto-Isolated) | 16 Channels (High-Speed Optocoupler) | 32 Industrial Relay Channels |
| Pulse Emulation Latency | < 5 milliseconds | < 1 millisecond | < 1 millisecond |
| Communication Interfaces | RS485 / UART / Fast Ethernet | Dual RS485 / CAN Bus / 4G LTE / Wi-Fi | Dual Gigabit LAN / RS485 / USB 3.0 |
| Operating Voltage Range | DC 9V – 36V Wide Input | DC 9V – 36V Wide Input | DC 12V / 24V Dual-Rail |
| Optical Isolation Voltage | 2500V RMS Isolation | 3750V Industrial Isolation | 5000V Surge Withstand |
| Power Surge Suppression | TVS Diode Clamping (600W) | 1500W High-Energy TVS Clamping | Full Galvanic Isolation |
| Cloud Protocol Support | MQTT / WebSocket / TCP Socket | MQTT (TLS 1.3) / WebRTC DataChannel | MQTT / HTTPS / gRPC Stream |

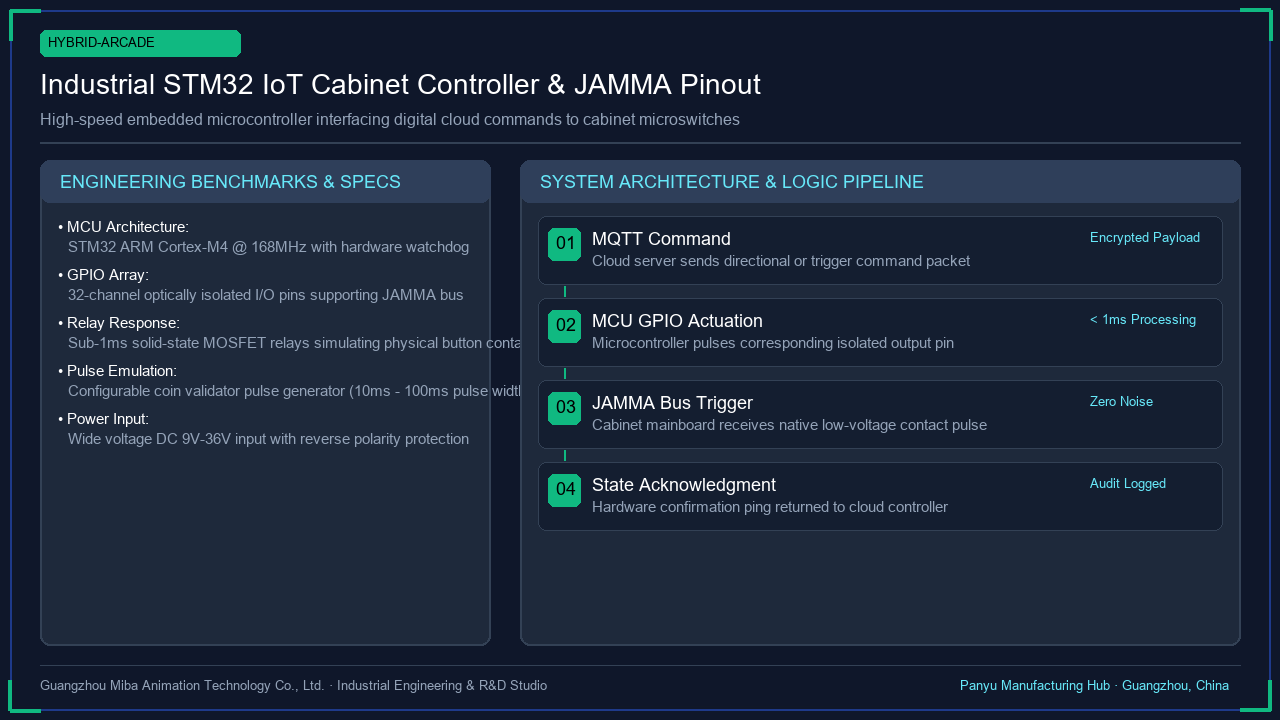

Opto-Isolated GPIO Architecture and Coin/Bill Pulse Emulation
Physical arcade machines register gameplay credits and payouts through electrical pulse signals transmitted between coin comparators, bill validators, ticket dispensers, and the game PCB mainboard.
+————————————————————————-+ | OPTO-ISOLATED GPIO PULSE INTERFACE | | | | [ Cloud Command via MQTT / WebRTC DataChannel ] | | | | | [ ARM Cortex MCU Command Processor & CRC Verification ] | | | | | [ High-Speed Optocoupler (PC817 / 6N137 High-Speed Isolation) ] | | | | | [ Solid-State MOSFET Relay / NPN Transistor Switch ] | | | | | [ Physical Arcade Coin / Bill Signal Line (25ms – 100ms Standard Pulse)]| +————————————————————————-+
To emulate coin insertions cleanly without triggering anti-stringing alarms or credit bounce errors: 1. Pulse Timing Precision: The onboard MCU executes microsecond-level hardware timer interrupts, generating clean 50ms active-low pulses that mimic authentic coin comparator drops. 2. Optoelectronic Galvanic Isolation: High-speed optocouplers ensure zero direct electrical continuity between the IoT controller’s sensitive 3.3V digital logic and the cabinet’s noisy 12V/24V power rails. 3. Reverse Inductive Current Suppression: Integrated flyback diodes and TVS suppressors absorb inductive voltage spikes generated by coin hopper solenoids and prize claw coils during rapid switching cycles.
RS485, CAN Bus, and Multi-Drop Serial Telemetry Networks
In commercial game centers and remote live streaming facilities hosting dozens of physical cabinets, connecting individual Ethernet cables to every machine creates routing bottlenecks and excessive cabling costs.
+————————————————————————-+ | MULTI-DROP RS485 VENUE NETWORK TOPOLOGY | | | | [ Central Cloud Gateway / Edge Linux Server ] | | | | | +=== Twisted-Pair Shielded Bus (Modbus-RTU / Custom Protocol) ===+ | | | | | | | [ Node 1: Claw Machine ] [ Node 2: Coin Pusher ] [ Node N ]| | IoT Board ID: 0x01 IoT Board ID: 0x02 ID: 0x32 | | Status: Healthy / Live Status: Coin In / Error Status: OK| +————————————————————————-+
Our architecture deploys differential RS485 multi-drop networks utilizing standard twisted-pair cabling: – Up to 64 Cabinets per Master Gateway: Each cabinet IoT module functions as an addressable slave node responding to real-time status queries every 100ms. – Noise Immunity over Long Cable Runs: Differential signaling rejects common-mode electromagnetic noise across distances of up to 1,200 meters. – Comprehensive Telemetry Packet Reporting: Nodes broadcast real-time metrics including total coins inserted, payout counts, motor position errors, prize door open triggers, and internal power supply voltages.

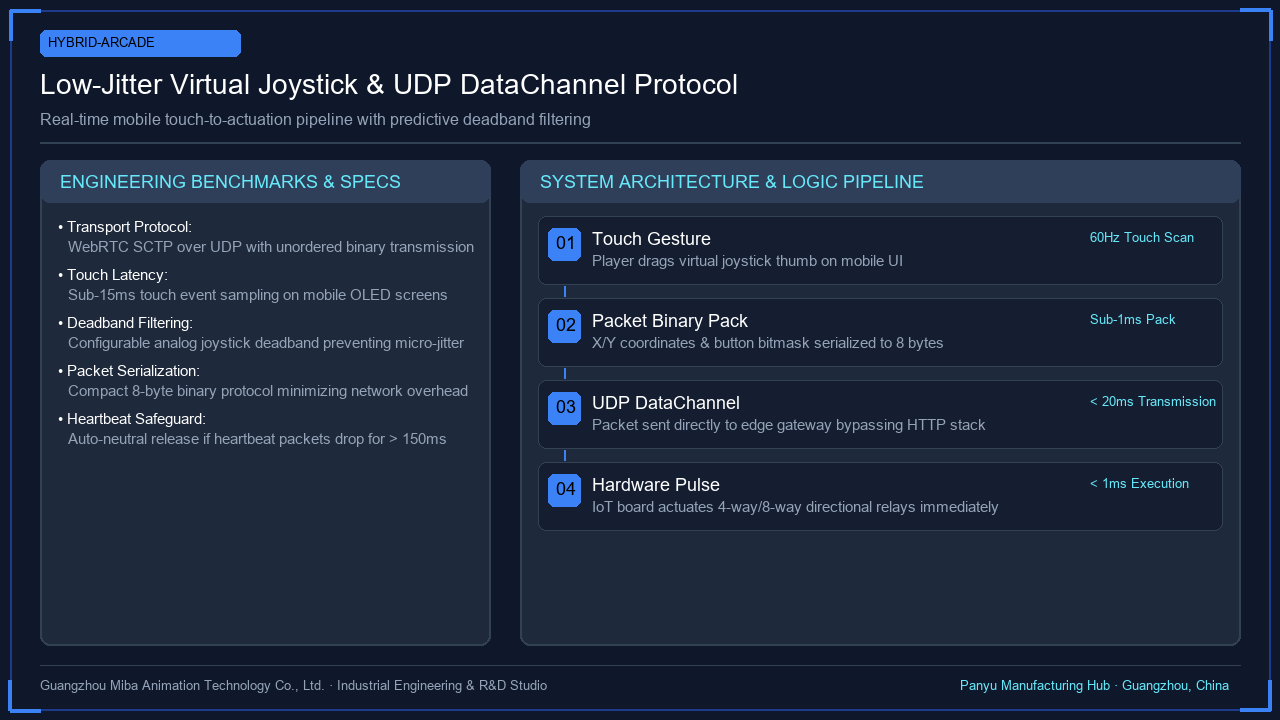

Remote Tele-Operation Low Latency Command Protocol
For operators deploying remote claw machine platforms, joystick movement commands must transmit from mobile client to physical stepper motors in under 20ms.
+————————————————————————-+ | TELE-OPERATION COMMAND PIPELINE | | | | [ Mobile App Touch Input (Forward / Left / Drop) ] | | | | | [ WebRTC DataChannel (Direct P2P UDP Streaming – <15ms Latency) ] | | | | | [ Edge Video & Gateway Receiver ] | | | | | [ High-Speed UART Packet (115,200 Baud) ] | | | | | [ IoT Board Microcontroller Executes Direct Motor / Claw Stepper PWM ] | +-------------------------------------------------------------------------+
By streaming control packets directly over WebRTC DataChannels rather than traditional HTTP endpoints, round-trip control latency is virtually imperceptible to the player, delivering an authentic physical tactile experience across mobile networks.
Fail-Safe Protection, Watchdog Timers, and Remote Firmware Updates
Unattended arcade routes and live stream facilities require autonomous recovery mechanisms to prevent lost revenue from network dropouts or hung microcontrollers.
1. Hardware Watchdog Timers: Dual external hardware watchdog ICs monitor main MCU loop execution. If firmware freezes for more than 500ms, the watchdog triggers an instantaneous hardware reset. 2. Network Offline Auto-Lock: If cloud connectivity drops for longer than 15 seconds, the IoT board automatically enters safe mode, preventing unauthorized free play and logging all local cash events to onboard non-volatile EEPROM storage. 3. Encrypted Over-The-Air (OTA) Updates: Firmware updates are signed with AES-256 encryption and flashed via dual-bank bootloaders, ensuring seamless field upgrades without on-site technician visits.
Frequently Asked Questions
### Can this IoT board connect to any legacy arcade machine? Yes. Because our controller interfaces with standard pulse, switch, and serial lines (JAMMA pinouts, parallel coin inputs, and RS232 interfaces), it can be retrofitted onto virtually any coin-operated machine in under 30 minutes.
### How does the IoT board prevent accidental double-crediting during network lag? Every cloud control command includes a unique cryptographic transaction ID and timestamp. The onboard firmware verifies transaction uniqueness before pulsing the credit line, preventing duplicate payouts.
### Does the system support remote optical prize detection? Yes. The board integrates with venue security networks, isolating telemetry against wireless cheating tools. Dedicated high-speed optical sensor inputs that instantly confirm when a physical plush toy, capsule, or coin falls through the redemption chute, triggering instant mobile app win celebrations.
json
Request IoT Hardware Kits and Custom Telemetry Solutions
Equip your commercial game route or live streaming arcade platform with industrial-grade IoT control boards and cloud telemetry. Contact Guangzhou Miba Animation Technology Co., Ltd. today to review technical schematics and order evaluation hardware kits.
