Maximizing revenue per square foot is the cornerstone of profitable route operations. For modern entertainment venues, the transition from traditional setups to larger formats has proven to be the most effective strategy to boost concurrent earnings.
The mathematics of floor yield dictates that seating more players around a single cabinet multiplies the earning potential of your real estate. When analyzing square-footage revenue maximization, standard arcade configurations frequently fall short against dedicated multiplayer architectures. By deploying 10-player layouts, venue operators can dramatically increase concurrent revenue density without a proportional increase in energy consumption or footprint. The geometry of a ten-station cabinet provides an optimal balance, drawing groups and enhancing competitive social dynamics that keep players engaged for longer sessions. Secure your commercial floor’s future by consulting with our manufacturing specialists for a custom build.
Commercial Fish Table Specifications and Floor Yield Analysis
Understanding the performance metrics across different cabinet configurations reveals why route operators prefer the 10-player specification.
| Metric | 4-Player Fish Table | 8-Player Fish Table | 10-Player Ocean King Commercial Table |
|---|---|---|---|
| Footprint Requirement | 25 sq ft | 45 sq ft | 52 sq ft |
| Concurrent Revenue Density | Standard Baseline | +85% vs Baseline | +130% vs Baseline |
| Power Consumption (Peak) | 450 Watts | 650 Watts | 750 Watts |
| Player Retention Rate | 40 Minutes | 65 Minutes | 90+ Minutes |
| Social Engagement | Low | High | Maximum |
Ergonomic Perimeter Design and 10-Station Control Console Layout
Designing a cabinet to accommodate ten simultaneous players requires advanced structural engineering to prevent cramped playing conditions. Player spacing must be calculated to allow unrestricted movement of elbows and hands during intense sessions, ensuring zero physical interference between adjacent stations. The overarching goal is to create an immersive, comfortable environment that encourages prolonged gameplay, directly correlating to sustained venue profitability.
The chassis utilizes heavy-gauge CNC cut steel to form sweeping curvatures that soften the industrial aesthetic while providing unparalleled structural rigidity. Each control console is angled precisely to align with natural wrist posture, thereby reducing fatigue during marathon gaming sessions. The integration of anti-spill acrylic bevels provides a necessary safeguard against beverage accidents, channeling liquids away from the delicate electronic inputs. Furthermore, heavy-duty joystick clearance ensures that aggressive handling does not result in component failure or cabinet damage. The overall construction incorporates rigid arcade machine security protocols, reinforcing the unit against tampering and physical brute force attacks on the coin mechanisms.
- [ ASCII Cabinet Floor Plan ]
- [Player 1] [Player 2] [Player 3]
- / \
- [Player 10] [Player 4]
- CENTRAL DISPLAY
- [Player 9] [Player 5]
- \ /
- [Player 8] [Player 7] [Player 6]
- This layout allows operators to maintain clear sightlines while deploying hardware defense systems internally to monitor coin mechanisms and bill validators, ensuring absolute integrity of the revenue stream. The geometric spacing also acts as a natural deterrent against collusion, maintaining fairness and competitive integrity on the arcade floor. The console integration seamlessly blends high-density seating with robust defensive architecture, representing a masterclass in industrial arcade design.
- ## Dual-Screen and Large-Format Commercial Display Engineering
- The visual centerpiece of any premium setup is the display architecture. To captivate ten players simultaneously, the hardware demands extreme viewing angles, high brightness, and robust physical protection. Our solutions leverage massive 85-inch or dual 55-inch 4K LG/Samsung industrial panels. These screens deliver striking contrast ratios, vibrant color reproduction, and fluid refresh rates essential for tracking fast-moving targets across the digital aquatic landscape. The pixel density ensures that every visual effect is rendered with stunning clarity, deeply immersing the players in the Ocean King ecosystem.
- Durability is guaranteed through the implementation of 6mm explosion-proof tempered glass over the primary LCD panels. This protective layer mitigates blunt force impacts and prevents scratching from rings, keys, and general wear typical in high-traffic environments. The industrial panels themselves carry a 50,000-hour backlight rating, guaranteeing years of continuous 24/7 operation without luminance degradation.
- [ ASCII Optical Stack ]
- ========================= [ 6mm Explosion-Proof Tempered Glass ]
- [ Optical Bonding Adhesive ]
- [ Anti-Glare / Anti-Reflective Coating ]
- [ 4K LG/Samsung LCD Matrix ]
- ^^^^^^^^^^^^^^^^^^^^^^^^^ [ High-Intensity LED Backlight (50,000h) ]
- ========================= [ Steel VESA Chassis Mount ]
- By ensuring that the visual experience remains pristine under heavy commercial use, operators can rely on the continuous draw of the game without worrying about frequent maintenance, screen replacements, or uninvited downtime. Thermal management systems are integrated directly behind the display matrices, using whisper-quiet dual bearing fans to extract heat and maintain optimal operating temperatures for the liquid crystal layers.
- ## Heavy-Amperage Power Distribution and Individual Station Fusing
- Supporting ten independent control stations, a massive commercial display, high-output audio amplifiers, and complex LED perimeter lighting requires a sophisticated power delivery system. Inadequate power supply results in voltage drops, sporadic resets, and premature component degradation. We engineer our cabinets with industrial-grade electrical components to guarantee absolute stability across all operational spectrums.
- The core of our heavy-amperage power distribution relies on Mean Well industrial dual-rail power supply units (PSUs). These redundant systems manage dynamic loads effortlessly, keeping voltages locked at precise levels regardless of the concurrent current draw from all ten player stations. To isolate potential faults, the architecture includes independent 10-station fuse blocks. If a single station experiences a short circuit or liquid ingress, the isolated fuse blows, leaving the remaining nine stations entirely operational. This compartmentalization is critical for maintaining uptime during peak operating hours.
- [ ASCII Electrical Schematic ]
- [ AC MAIN IN ]
- [ EMI FILTER ]
- [ MEAN WELL PSU 1 (5V/12V) ] =====> [ MASTER I/O BOARD ] =====> [ COIN / BILL / TICKET ]
- [ MEAN WELL PSU 2 (24V) ] ========> [ INDEPENDENT FUSE BLOCK ]
- [ STATION 1 (Joy/Btn) ]
- [ STATION 2 (Joy/Btn) ]
- [ … ]
- [ STATION 10 (Joy/Btn) ]
All data and power routing utilizes pure copper JAMMA harnesses, maximizing conductivity and eliminating the risk of oxidized connections over years of operation. The power architecture is tightly integrated with any anti cheat device installed on the mainboard, preventing voltage manipulation and ensuring the absolute reliability of your daily cash reconciliation processes. Shielded internal cabling drastically reduces electromagnetic interference (EMI) between the power lines and the sensitive data channels.

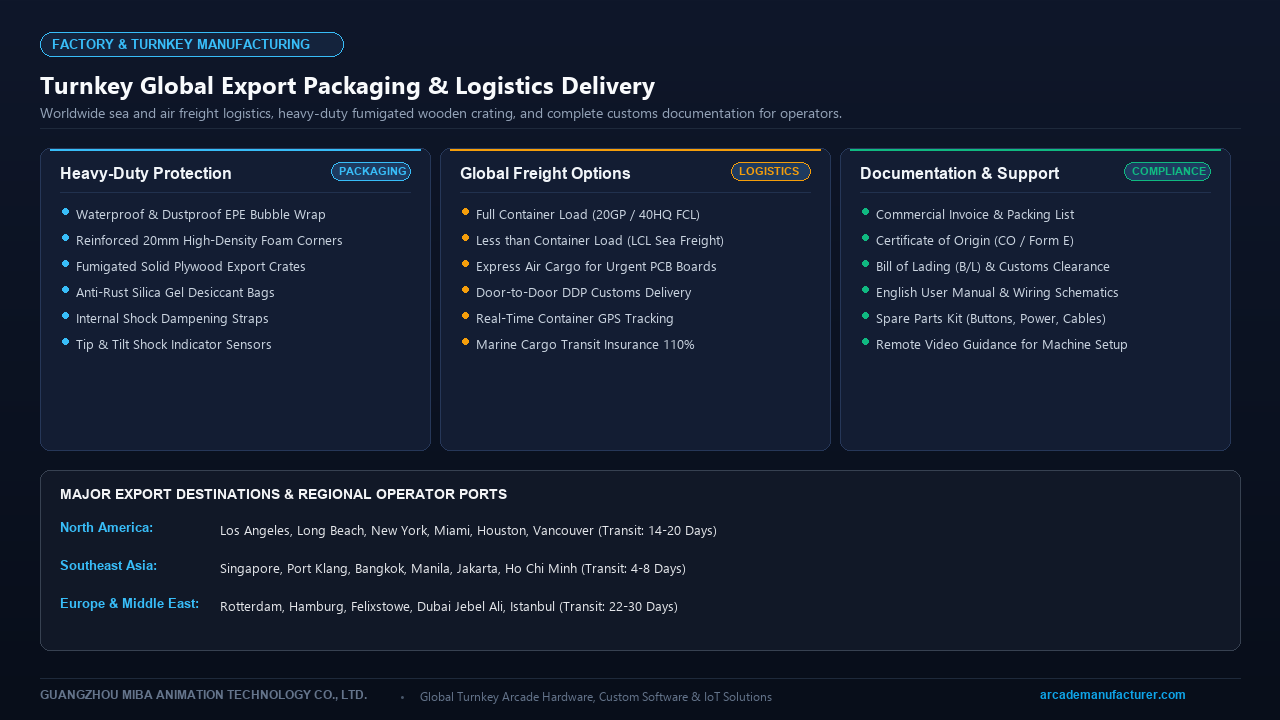

Factory Shipping Logistics, Knock-Down Packaging and Assembly Guidelines
Moving a 10-player cabinet from the manufacturing floor to an arcade venue requires strategic logistics. The physical dimensions of a fully assembled ten-station unit often exceed standard commercial doorways, making traditional shipping methods inefficient and problematic for on-site installation. Navigating freight elevators, narrow hallways, and standard door frames becomes an impossibility without an engineered solution.
To overcome these logistical hurdles, our engineering team has perfected the knock-down (KD) packaging methodology. Flat-pack crating allows the massive cabinet chassis to be disassembled into modular components that are individually wrapped, foam-protected, and secured within reinforced wooden crates. This approach significantly reduces the volumetric weight and footprint during transit, enabling high-density loading for ocean freight. For international route operators, this modularity means up to 30% more units can fit within a standard 20GP or 40HQ container optimization strategy, dramatically lowering the shipping cost per unit.
Upon arrival, the assembly process is straightforward and heavily documented. Each component is precision-machined to ensure perfect alignment, guided by comprehensive assembly manuals and video tutorials. The modular design means that a small team can navigate tight corridors and reconstruct the unit directly on the game floor, radically reducing deployment time and entirely eliminating the need for expensive structural modifications to the venue.
Frequently Asked Questions
How does a 10-player cabinet improve return on investment compared to standard models? By consolidating ten revenue-generating stations into a single cabinet, operators significantly reduce the overhead costs associated with powering and maintaining multiple smaller machines. The high-density footprint maximizes square-footage revenue, while the communal gameplay heavily increases player retention and overall session spending.
Are the displays protected against aggressive commercial environments? Yes, every commercial unit utilizes a 6mm explosion-proof tempered glass overlay covering the primary industrial LCD panels. This protective barrier is engineered to withstand blunt impacts, heavy leaning, and liquid spills, ensuring the delicate screen matrix underneath remains perfectly intact for years of continuous operation.
How does the power distribution system handle ten simultaneous players? The cabinet features a heavy-amperage architecture powered by Mean Well industrial dual-rail PSUs. Crucially, the system utilizes independent 10-station fuse blocks. If one player station shorts out, the isolated fuse protects the main board and keeps the other nine stations fully operational, preventing total machine downtime.
What is the best way to transport these massive cabinets into venues with standard doors? Our cabinets utilize a knock-down flat-pack crating system. This modular design allows the entire chassis to be broken down into manageable segments that easily pass through standard commercial doorways. On-site assembly is highly streamlined, enabling rapid deployment in tight arcade locations without requiring architectural modifications.
Secure Your Arcade Infrastructure
Investing in high-yield, 10-player fish tables transforms standard game rooms into highly profitable entertainment hubs. By integrating sophisticated engineering with rugged commercial materials, these cabinets offer unmatched longevity and earning potential. For specialized requirements, custom configurations, and bulk container pricing, reach out directly to our manufacturing headquarters. Our engineers are ready to assist you in designing the optimal layout to service arcade locations of any scale.
Contact Engineer Wang at +86 17620842078 to discuss your technical specifications, request schematics, and secure your production timeline. Visit the Guangzhou Miba Animation Technology Co., Ltd. Panyu facility to experience our robust hardware engineering firsthand and witness the manufacturing precision that drives the industry’s highest grossing commercial gaming floors.
