Modern casino and commercial sweepstakes floors demand high visual immersion and ergonomic durability to maximize player session length and coin-in velocity. Deploying industrial curved screen slot cabinets elevates player retention by up to 35% compared to legacy flat-screen configurations.
Achieving flawless operational reliability across 24/7 commercial environments requires stringent engineering standards for C-curve and J-curve panel curvature, projected capacitive (PCAP) multi-touch calibration, electrostatic discharge (ESD) suppression, and thermal management. At our Panyu manufacturing facility, Guangzhou Miba Animation Technology Co., Ltd. builds heavy-duty 43-inch and 55-inch 4K curved slot machine cabinets engineered for seamless integration with commercial bill acceptors, thermal printers, and dynamic button decks. Route operators and gaming venue distributors can contact Engineer Wang for turnkey OEM hardware configurations and factory-direct procurement.

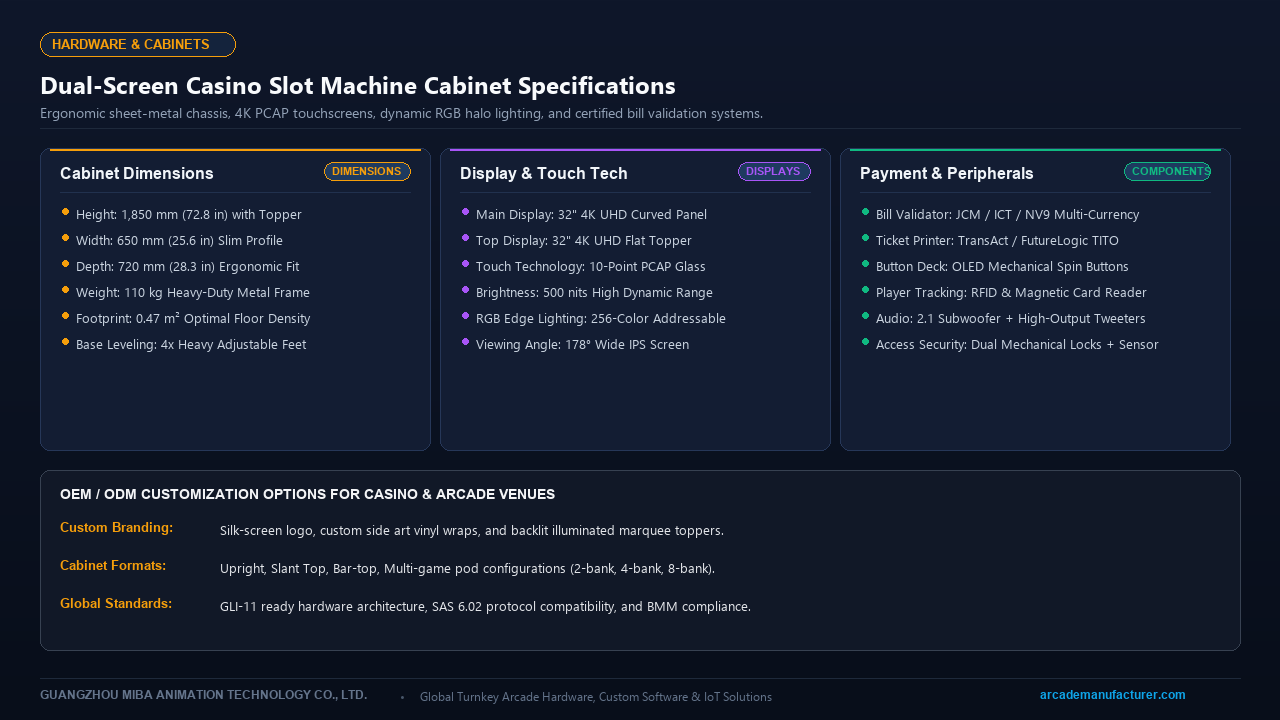

Curved Display Form Factors and Touchscreen Technical Specifications
Selecting the appropriate display radius and touch controller architecture determines cabinet footprint, optical clarity, and resistance to environmental electrical noise.
| Engineering Parameter | 43-Inch J-Curve Cabinet | 43-Inch C-Curve Cabinet | 55-Inch Ultra-Curved Kiosk |
|---|---|---|---|
| Panel Curvature Radius | 1500R Concave Curve | 1800R Uniform Curve | 1500R Deep Immersion |
| Native Resolution | 3840 x 2160 (4K UHD) | 3840 x 2160 (4K UHD) | 3840 x 2160 (4K UHD) |
| Touchscreen Technology | 10-Point Industrial PCAP | 10-Point Industrial PCAP | 20-Point Multi-Touch PCAP |
| Cover Glass Specification | 4mm Chemically Strengthened | 4mm Explosion-Proof Glass | 6mm Thermal-Tempered Glass |
| Surface Treatment | Anti-Glare & Anti-Fingerprint | Anti-Glare (AG) Optical Etch | Anti-Glare & Anti-Reflective |
| Touch Controller IC | EETI EXC3188 / ILITEK ILI2511 | EETI Industrial Series | EETI Dual-Core HID Chipset |
| ESD Immunity Standard | Contact 8kV / Air 15kV | Contact 8kV / Air 15kV | Contact 10kV / Air 20kV |
| Backlight Lifespan (MTBF) | 50,000 Hours Continuous | 50,000 Hours Continuous | 50,000 Hours Continuous |
CNC Sheet Metal Chassis and Structural Curvature Engineering
The mechanical integrity of a curved screen cabinet depends on precision chassis fabrication that eliminates mechanical torsional stress across the glass substrate. Bending optical glass into a 1500R curvature creates internal tension that must be insulated from cabinet flexing during transport and floor movement.

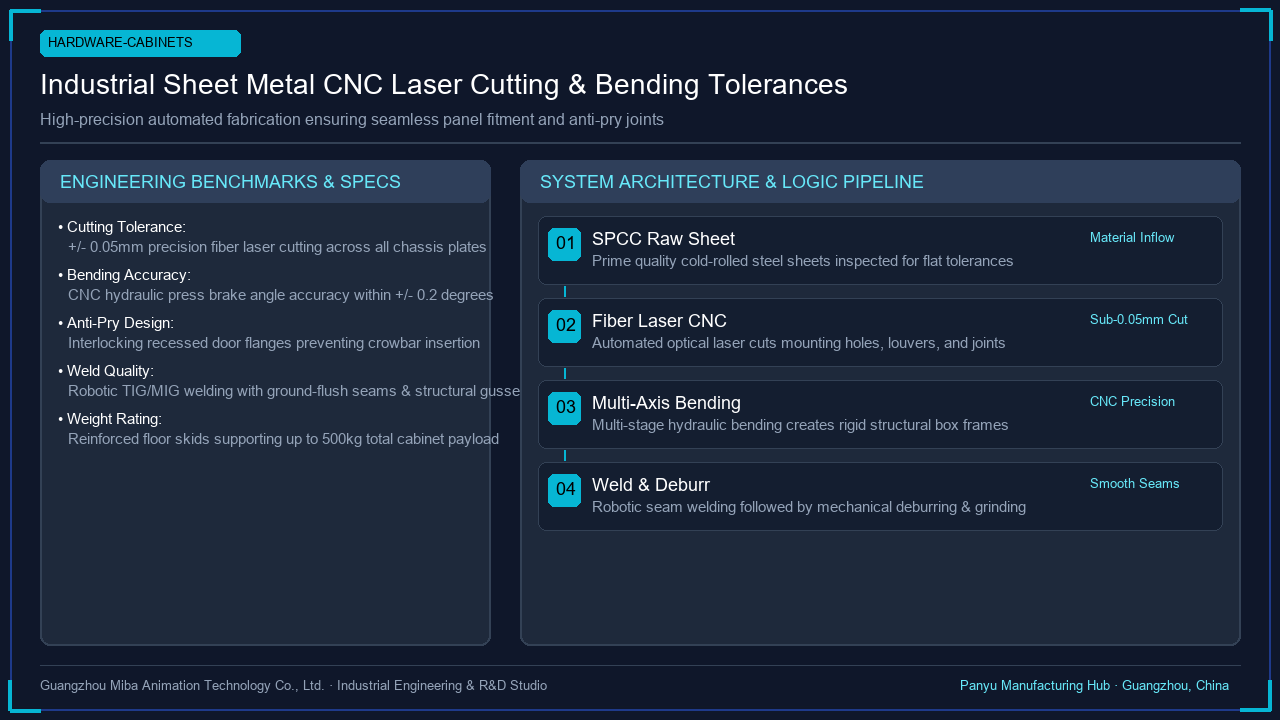

Our chassis engineering utilizes 1.5mm to 2.0mm SPCC cold-rolled steel, processed on precision TRUMPF CNC laser cutters, adhering to heavy-duty sheet metal fabrication standards for industrial gaming cabinets. The structural subframe incorporates a dedicated curved mounting cradle lined with high-density EPDM vibration-dampening gaskets. This cradle isolates the fragile TFT LCD cell and optical bonding layer from external impacts, player leaning forces, and chassis distortion.
+————————————————————————-+ | CURVED CHASSIS MECHANICAL STACK-UP | | | | [ 4.0mm Chemically Strengthened Curved Glass Cover ] | | | | | [ Optical Clear Resin (LOCA) Bonding Layer – Zero Air Gap ] | | | | | [ High-Bright 4K Curved TFT LCD Open-Cell Matrix ] | | | | | [ EPDM High-Density Vibration Dampening Isolation Gasket ] | | | | | [ 2.0mm Heavy-Duty CNC Laser-Formed Steel Mounting Subframe ] | +————————————————————————-+
Thermal dissipation channels are engineered directly behind the display driver boards (T-CON) and LED backlight rails. Twin high-CFM dual-ball-bearing exhaust fans extract hot air through top-mounted baffled vents, maintaining internal cavity temperatures below 45 degrees Celsius even during continuous 24/7 commercial operation.
PCAP Multi-Touch Calibration and Electrical Noise Suppression
Projected capacitive touchscreens operate by detecting minute micro-farad capacitance variations between driving and sensing electrode grids. In busy arcade and gaming venues, electromagnetic interference from switching power supplies, bill validator transport motors, ticket dispensers, and high-frequency lighting can induce phantom touches or unresponsive zones.
To ensure pinpoint tracking accuracy, our engineering team calibrates EETI and ILITEK controller firmware across five critical operational vectors.
+————————————————————————-+ | TOUCH CONTROLLER NOISE FILTERING PIPELINE | | | | [ Raw Capacitance Signal from 10-Point Curved Sensor Grid ] | | | | | [ Hardware Analog Band-Pass Filter (50Hz – 250kHz Suppression) ] | | | | | [ Digital Dynamic Threshold Calibration (Palm & Spill Rejection) ] | | | | | [ HID USB 2.0 Driver Packet Output with <8ms Response Latency ] | +-------------------------------------------------------------------------+
The calibration firmware incorporates advanced digital filtering algorithms: 1. Dynamic Noise Hopping: The touch IC continuously monitors ambient RF noise and automatically shifts driving frequencies between 75kHz and 250kHz to avoid active EMI interference bands. 2. Liquid Spill and Palm Rejection: Mathematical contour mapping distinguishes intentional single/multi-finger gestures from resting hands or spilled beverage moisture pooling on the bottom curve. 3. Corner and Edge Sensitivity Tuning: Because electric fields disperse differently across the perimeter of curved surfaces, driving voltage is dynamically increased near the display bezels to deliver uniform touch responsiveness across 100% of the active surface area.
Power Architecture, Peripheral Fusing, and Button Deck Integration
A commercial slot cabinet must cleanly power the display, audio subwoofers, dynamic LED halo lighting, PC mainboard, and cash-handling peripherals. Many operators pair these units alongside 10 player ocean king multiplayer stations without creating voltage spikes or ground loops.
+————————————————————————-+ | SLOT CABINET POWER & PERIPHERAL TOPOLOGY | | | | [ AC 110V / 220V Main Input ] —> [ Industrial EMI Power Filter ] | | | | | +————————————-+———————+ | | | | | | [ Mean Well 12V/24V Industrial PSU ] [ PC Power Supply ]| | | | | | +—> [ 43″ 4K Curved Display & LED Driver ] | | | +—> [ Custom OLED Virtual Button Deck ] | | | +—> [ JCM / ICT Bill Acceptor & Thermal Printer ] | | | +—> [ High-Amperage 2.1 Channel Audio Amplifier ] | | +————————————————————————-+
Our electrical design incorporates Mean Well industrial switching power supplies with independent thermal overload and short-circuit protections. Ground lines from the touch controller, bill acceptor harness, and metal chassis tie back to a centralized copper grounding busbar, preventing ground potential drift and eliminating touch jitter caused by floating ground states.
The lower console integrates a dual-tier button deck design supporting both physical mechanical pushbuttons (Copal or Happ switches rated for 10 million cycles) and secondary ultra-wide touchscreen button strips with programmable haptic feedback.
Factory Assembly, Burn-In Testing, and Global Ocean Shipping
Every curved slot cabinet leaving our Guangzhou manufacturing plant undergoes rigorous multi-stage quality assurance protocols to ensure zero dead-on-arrival (DOA) failures for overseas operators.
1. 72-Hour Full-Load Thermal Burn-In: Display panels and control boards run continuously in elevated temperature chambers at 40 degrees Celsius displaying dynamic white and color test patterns. 2. High-Voltage Surge and Dielectric Testing: Cabinet chassis and wiring harnesses pass 1500V dielectric withstand tests to certify insulation integrity, compatible with any certified anti cheat device on the floor. 3. Automated Touch Grid Calibration: Robotic stylus testing plots coordinate accuracy across 500 distinct grid points to ensure geometric deviation remains under 1.0mm. 4. Export Sea-Freight Packaging: Cabinets are wrapped in electrostatic bubble wrap, packed with precision-cut EPE foam corner blocks, and sealed inside fumigated heavy-duty plywood crates built to withstand transoceanic container shipping.
Frequently Asked Questions
### What curvature radius is ideal for commercial slot machines? A 1500R radius provides the optimal focal balance for players seated 50cm to 75cm from the screen, delivering wide-angle peripheral immersion without distorting game graphics or causing player eye strain during extended sessions.
### How does PCAP touchscreen calibration resist accidental liquid spills? Our industrial touch controllers utilize mutual-capacitance matrix sensing with firmware-level water-rejection algorithms. When continuous capacitance saturation occurs over a broad area, the controller suppresses the signal while continuing to register discrete finger taps.
### Can curved cabinets fit standard JCM and MEI bill acceptors? Yes. Our front door bezels and mounting brackets are precision-punched to accommodate standard gaming peripherals including JCM iVIZION, MEI Cashflow, ICT PA7/A6 bill validators, and FutureLogic/TransAct ticket printers.
